In-line Dry Material Conveying for Heavy Duty Industrial Applications
No need for expensive and maintenance needy conveying systems, for moving products from one area to another. AIRTX compressed air operated ConveyVacs are easily installed in line to provide conveying without electric motors that wear out quickly. Many sizes and vacuum ranges are available for your products.
ConveyVac Products
-

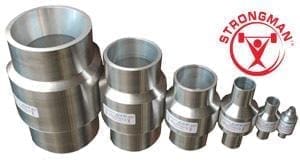

Strongman / ConveyVac
$81.00 – $2,965.00 Select options This product has multiple variants. The options may be chosen on the product page
AiRTX ConveyVac Advantages
- No maintenance
- Quiet operation
- 5 sizes available in both Aluminum and Stainless Steel
- Compressed air operated
- Fits standard PVC pipe sizes
- Heavy duty industrial use
- 6.25″ Hg vacuum on Model 98008 @80 psi
INDUSTRIAL SOLUTIONS FOR CONVEYVACS
USES FOR AIRTX CONVEYVAC
- In-Line Vacuum
- Convey chips, parts, trim scrap, finished goods, pills, pellets, and golf balls
- Boost air flow in existing vacuuum system
- Model 98108 will lift 50 pounds of sand per minute
Technical Data For Cold Air Guns

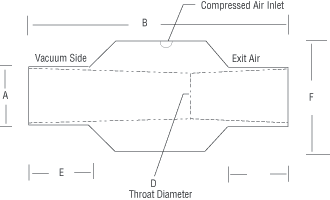

CONVEYVAC / STRONGMAN CONVEYVAC DIMENSIONS
ConveyVac Dimensions | |||||||||
| Aluminum | Stainless | A Inch / mm | B | C | D | E | F | Air Consumption @ 80 psi | |
| 98004 | 90004 | 0.75″ | 19 | 2.8 | 1/8″ NPT | .377″ | .50″ | 1.25″ | 20 cfm |
| 98008 | 90008 | 1″ | 25 | 3.565″ | 1/4 NPT | 0.80″ | 1″ | 1.50″ | 28 cfm |
| 98012 | 90012 | 1.5″ | 38 | 5.7″ | 1/4 NPT | 1.25″ | 1.5″ | 2.75″ | 28 cfm |
| 98022 | 90022 | 3″ | 75 | 6″ | 3/8 NPT | 2.25″ | 1.5″ | 4.00″ | 32 cfm |
| 98032 | 90032 | 4″ | 101 | 8″ | 1/2 NPT | 3.25″ | 2″ | 5.00″ | 42 cfm |
| 98042 | 90042 | 6″ | 150 | 10″ | 1/2 NPT | 4.25″ | 2″ | 6.00″ | 52 cfm |
StrongMan ConveyVac Dimensions | |||||||||||
| Aluminum | Stainless | Threaded Stainlness | A Inch / mm | B | C | D | E | F | Air Consumption@ 80 psi | ||
| 98104 | 98204 | 0.75″ | 19 | 2.8″ | 1/8″ NPT | .377″ | .50″ | .42″ | 25 cfm | ||
| 98108 | 98208 | 90308 | 1″ | 25 | 3.5″ | 1/4 NPT | 0.80″ | 1″ | 1.50″ | 56 cfm | |
| 98112 | 98212 | 90312 | 1.5″ | 38 | 5.7″ | 1/4 NPT | 1.25″ | 1.5″ | 2.75″ | 60 cfm | |
| 98122 | 98222 | 3″ | 75 | 6″ | 3/8 NPT | 2.25″ | 1.5″ | 4.00″ | 92 cfm | ||
| 98132 | 98232 | 4″ | 101 | 8″ | 1/2 NPT | 3.25″ | 2″ | 5.00″ | 110 cfm | ||
| 98142 | 98242 | 90342 | 6″ | 150 | 10″ | 1/2 NPT | 4.25″ | 2″ | 6.00″ | 118 cfm | |
COMPRESSED AIR SUPPLY
Air supplies are plagued with condensed water vapor in the air lines. This condensation leads to rust and dirt in the air lines. Also some compressors will allow oil or oil vapor to enter the line. Small orifices in the AIRTX Air Saver products may become clogged with the rust dirt, and water droplets. A 5-micron filter will separate 99% of the foreign material from the air supply allowing virtually maintenance free operation. The use of an oil filter will remove the oil droplets with an effective filtration of 0.01 ppm for an even cleaner air supply. Keep in mind that the current line or air might contain dirt or oil and should be blown out before installation. Also pipe thread sealant or tape must be carefully applied to avoid clogging product orifices.
AIRTX PRODUCT PERFORMANCE/COMPRESSED AIR SUPPLY LINE SIZE
To obtain maximum performance from the AIRTX ConveyVac, accurate measurements of air pressure (psi) and air volume (cfm) must be obtained. Line pressure of 70-90 psi can be present without sufficient volume (cfm) of air. To ensure that both pressure and volume are present to efficiently operate the AiRTX products, a line size of 1/4“ pipe or 1/2” hose should be used for applications up to 10ft. from the main header. Use 3/8” pipe or 3/4” hose up to 20 ft. and 3/4” pipe and 1” hose up to 50 feet. Do not use coiled hose as the very small inside diameter of the hose limits air flow. Avoid 90° bends in the air hose leading to the vacuum side or exit side of the ConveyVac as this creates turbulence in the flow and limits the effectiveness.
