Technical Data for Wedges

DOWNLOAD THE DIMENSIONAL DATA PDF HERE

Model 38050/30050

Model 38050/30050

2" Wedge Blow-Off Force in Ounces of Thrust
Distance from Target Pressure (PSIG)
  40psi 60psi 80psi 100psi
6" 20 28 34 39
12" 14 22 29 35
18" 10 17 24 30
Compressed Air CFM 16 22 28 32
Consumption LPM 453 623 794 906

Model 38054/30054

Model 38054/30054

4" Wedge Blow-Off Force in Ounces of Thrust
Distance from Target Pressure (PSIG)
  40psi 60psi 80psi 100psi
6" 40 56 68 78
12" 28 44 58 70
18" 20 34 48 60
Compressed Air CFM 32 44 56 64
Consumption LPM 906 1246 1588 1812

Model 38150/30150

Model 38150/30150

2" Hurricane Wedge Blow-Off Force in Ounces of Thrust
Distance from Target Pressure (PSIG)
  40psi 60psi 80psi 100psi
6" 46 64 78 90
12" 32 51 67 81
18" 23 39 55 69
Compressed Air CFM 29 40 50 58
Consumption LPM 820 1132 1415 11641

Model 38154/30154

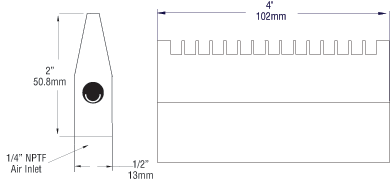

Model-38154-30154

4" Hurricane Wedge Blow-Off Force in Ounces of Thrust
Distance from Target Pressure (PSIG)
  40psi 60psi 80psi 100psi
6" 94 128 156 180
12" 64 102 134 162
18" 46 78 110 130
Compressed Air CFM 52 70 90 104
Consumption LPM 1471 1981 2547 2943

Wedge Flow Pattern

High Thrust Wedges Technical Data
